RF1S25N06 - 25A/ 60V/ 0.047 Ohm/ N-Channel Power MOSFETs

Fairchild Semiconductor

Datasheet Details

Part number	RF1S25N06
Manufacturer	Fairchild ↗ Semiconductor
File Size	419.73 KB
Description	25A/ 60V/ 0.047 Ohm/ N-Channel Power MOSFETs
Datasheet	RF1S25N06_FairchildSemiconductor.pdf

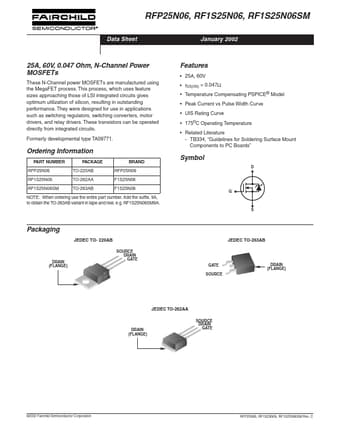

25A, 60V.
rDS(ON) = 0.047Ω.
Temperature Compensating PSPICE® Model.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
175oC Operating Temperature.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER RFP25N06 RF1S25N06 RF1S25N06SM.
