RF1S30P05 P-Channel Enhancement-Mode Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

SEMICONDUCTOR RFG30P05, RFP30P05, RF1S30P05, RF1S30P05SM December 1995 30A, 50V, Avalanche Rated, P-Channel Enhancement-Mode Power MOSFETs .
The RFG30P05, RFP30P05, RF1S30P05, and RF1S30P05SM P-Channel power MOSFETs are manufactured using the MegaFET process.

📥 Download Datasheet

Preview of RF1S30P05 PDF

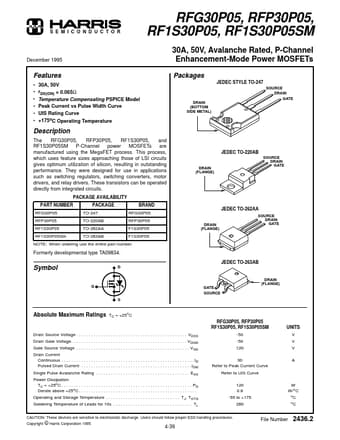

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RF1S30P05
Manufacturer
Harris
File Size
98.94 KB
Datasheet
RF1S30P05-Harris.pdf
Description
P-Channel Enhancement-Mode Power MOSFET

Features

* 30A, 50V
* rDS(ON) = 0.065Ω
* Temperature Compensating PSPICE Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve

Applications

* such as switching regulators, switching converters, motor drivers, and relay drivers. These transistors can be operated directly from integrated circuits. PACKAGE AVAILABILITY PART NUMBER PACKAGE BRAND RFG30P05 TO-247 RFG30P05 RFP30P05 TO-220AB RFP30P05 RF1S30P05 TO-262AA F1S30P05 RF1S
