RF1S30P05SM 30A/ 50V/ 0.065 Ohm/ P-Channel Power MOSFETs

📥 Download Datasheet Datasheet Preview Page 1

Description

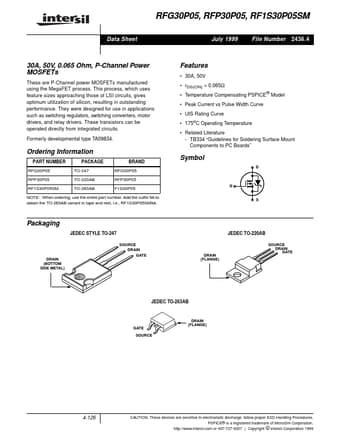

RFG30P05, RFP30P05, RF1S30P05SM Data Sheet July 1999 File Number 2436.4 30A, 50V, 0.065 Ohm, P-Channel Power MOSFETs These are P-Channel power MOSFET.

📥 Download Datasheet

Preview of RF1S30P05SM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RF1S30P05SM
Manufacturer
Intersil Corporation
File Size
70.90 KB
Datasheet
RF1S30P05SM_IntersilCorporation.pdf
Description
30A/ 50V/ 0.065 Ohm/ P-Channel Power MOSFETs

Features

* 30A, 50V
* rDS(ON) = 0.065Ω
* Temperature Compensating PSPICE® Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175oC Operating Temperature
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Bo
