RF1S30N06LESM Datasheet, Mosfets, Fairchild Semiconductor

RF1S30N06LESM Features

  • Mosfets
  • 30A, 60V
  • rDS(ON) = 0.047Ω
  • 2kV ESD Protected
  • Temperature Compensating PSPICE Model
  • Peak Current vs Pulse Width Curve
  • UIS Ratin

PDF File Details

Part number:

RF1S30N06LESM

Manufacturer:

Fairchild Semiconductor

File Size:

150.85kb

Download:

📄 Datasheet

Description:

30a 60v esd rated/ avalanche rated / logic level n-channel enhancement-mode power mosfets. The RFP30N06LE, RF1S30N06LE and RF1S30N06LESM are N-Channel power MOSFETs manufactured using the MegaFET process. This process, which

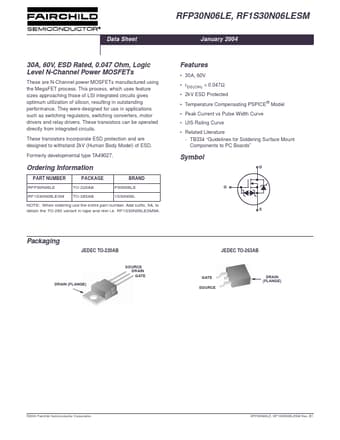

Datasheet Preview: RF1S30N06LESM 📥 Download PDF (150.85kb)
Page 2 of RF1S30N06LESM Page 3 of RF1S30N06LESM

RF1S30N06LESM Application

  • Applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from in
