RF1S40N10 Datasheet, Mosfets, Fairchild Semiconductor

RF1S40N10 Features

  • Mosfets
  • 40A, 100V
  • rDS(ON) = 0.040Ω
  • UIS Rating Curve
  • SOA is Power Dissipation Limited
  • 175oC Operating Temperature
  • Related Literature -

PDF File Details

Part number:

RF1S40N10

Manufacturer:

Fairchild Semiconductor

File Size:

371.85kb

Download:

📄 Datasheet

Description:

40a/ 100v/ 0.040 ohm/ n-channel power mosfets.

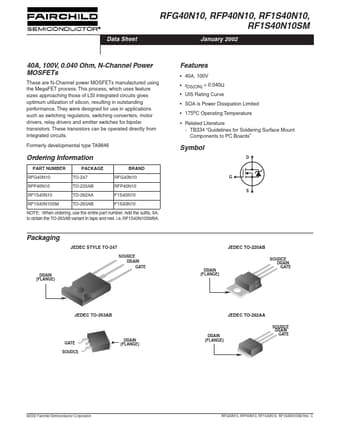

Datasheet Preview: RF1S40N10 📥 Download PDF (371.85kb)
Page 2 of RF1S40N10 Page 3 of RF1S40N10

RF1S40N10 Application

  • Applications such as switching regulators, switching converters, motor drivers, relay drivers and emitter switches for bipolar transistors. These tr
