RF1S45N06SM Datasheet - Fairchild Semiconductor

RF1S45N06SM, 45A/ 60V/ Avalanche Rated N-Channel Enhancement-Mode Power MOSFETs

S E M I C O N D U C T O R RFG45N06, RFP45N06, RF1S45N06, RF1S45N06SM 45A, 60V, Avalanche Rated N-Channel Enhancement-Mode Power MOSFETs Packages JEDE.
The RFG45N06, RFP45N06, RF1S45N06, RF1S45N06SM N-Channel power MOSFETs are manufactured using the MegaFET process.

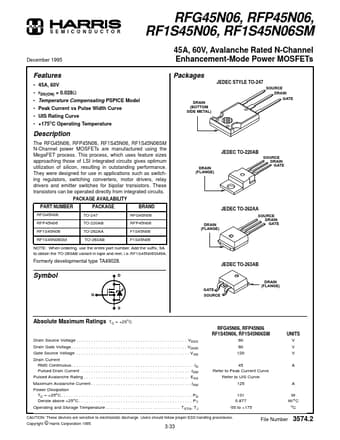

datasheet Preview Page 1 from Datasheet4u.com

RF1S45N06SM_FairchildSemiconductor.pdf

RF1S45N06SM Datasheet Preview — Preview of RF1S45N06SM PDF

Datasheet Details

Part number:

RF1S45N06SM

Manufacturer:

Fairchild Semiconductor

File Size:

82.12 KB

Description:

45A/ 60V/ Avalanche Rated N-Channel Enhancement-Mode Power MOSFETs

Features

* 45A, 60V
* rDS(ON) = 0.028Ω
* Temperature Compensating PSPICE Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve

Applications

* such as switching regulators, switching converters, motor drivers, relay drivers and emitter switches for bipolar transistors. These transistors can be operated directly from integrated circuits. PACKAGE AVAILABILITY PART NUMBER RFG45N06 RFP45N06 RF1S45N06 RF1S45N06SM JEDEC TO-220AB SOURCE DRAIN GA
