RF1S45N02L 45A/ 20V/ 0.022 Ohm/ N-Channel Logic Level Power MOSFETs

📥 Download Datasheet Datasheet Preview Page 1

Description

RFP45N02L, RF1S45N02L, RF1S45N02LSM May 1997 45A, 20V, 0.022 Ohm, N-Channel Logic Level Power MOSFETs .
The RFP45N02L, RF1S45N02L, and RF1S45N02LSM are N-Channel power MOSFETs manufactured using the MegaFET process.

📥 Download Datasheet

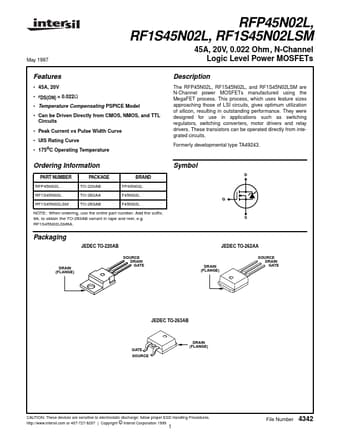

Preview of RF1S45N02L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RF1S45N02L
Manufacturer
Intersil Corporation
File Size
78.87 KB
Datasheet
RF1S45N02L_IntersilCorporation.pdf
Description
45A/ 20V/ 0.022 Ohm/ N-Channel Logic Level Power MOSFETs

Features

* 45A, 20V
* rDS(ON) = 0.022Ω
* Temperature Compensating PSPICE Model
* Can be Driven Directly from CMOS, NMOS, and TTL Circuits
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175oC Operating Temperature Ordering Information PART NUM
