RF1S45N03LSM - 45A/ 30V/ 0.022 Ohm/ Logic Level/ N-Channel Power MOSFETs

Intersil Corporation

Datasheet Details

Part number	RF1S45N03LSM
Manufacturer	Intersil Corporation
File Size	100.18 KB
Description	45A/ 30V/ 0.022 Ohm/ Logic Level/ N-Channel Power MOSFETs
Datasheet	RF1S45N03LSM_IntersilCorporation.pdf

These are N-Channel power MOSFETs manufactured using the MegaFET process.

45A, 30V.
rDS(ON) = 0.022Ω.
Temperature Compensating PSPICE Model.
Can be Driven Directly from CMOS, NMOS, and TTL Circuits.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
175oC Operating Temperature.

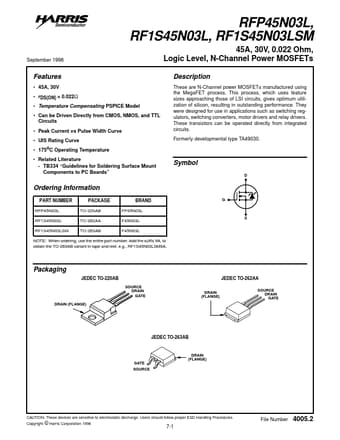

Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” [ /Title (RFP45 N03L, RF1S45 N03L, RF1S45 N03LS M) /Subject (45A, 30V, 0.022 Ohm, Symbol D Ordering Information PART NUMBER R.
