RF1S30P06 30A/ 60V/ 0.065 Ohm/ P-Channel Power MOSFETs

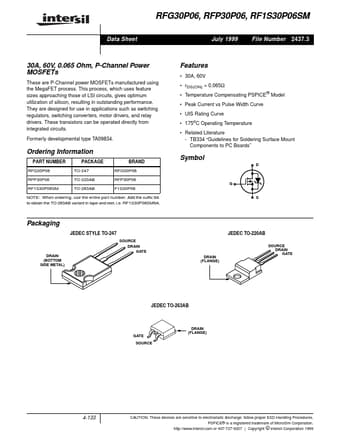

📥 Download Datasheet Datasheet Preview Page 1

Description

RFG30P06, RFP30P06, RF1S30P06SM Data Sheet July 1999 File Number 2437.3 30A, 60V, 0.065 Ohm, P-Channel Power MOSFETs These are P-Channel power MOSFET.

📥 Download Datasheet

Preview of RF1S30P06 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RF1S30P06
Manufacturer
Intersil Corporation
File Size
71.16 KB
Datasheet
RF1S30P06_IntersilCorporation.pdf
Description
30A/ 60V/ 0.065 Ohm/ P-Channel Power MOSFETs

Features

* 30A, 60V
* rDS(ON) = 0.065Ω
* Temperature Compensating PSPICE® Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175oC Operating Temperature
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Bo
