RFP15N05L N-Channel Power MOSFET

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

RFP15N05L, RFP15N06L Data Sheet July 1999 File Number 1558.3 15A, 50V and 60V, 0.140 Ohm, Logic Level N-Channel Power MOSFETs These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmen.

RFP15N05L Features

* 15A, 50V and 60V

* rDS(ON) = 0.140Ω

* Design Optimized for 5V Gate Drives

* Can be Driven from QMOS, NMOS, TTL Circuits

* Compatible with Automotive Drive Requirements

* SOA is Power Dissipation Limited

* Nanosecond Switching Speeds

RFP15N05L_IntersilCorporation.pdf

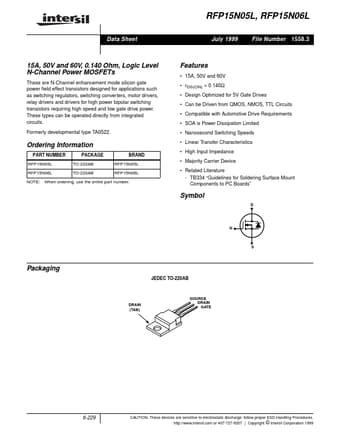

RFP15N05L Datasheet Preview — Preview of RFP15N05L PDF

Datasheet Details

Part number:

RFP15N05L

Manufacturer:

Intersil Corporation

File Size:

40.61 KB

Description:

N-channel power mosfet.
