ISL73096EH, ISL73127RH, Radiation Hardened Ultra High Frequency NPN/PNP Transistor
PIN # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PIN NAME/DESCRIPTION ISL73096RH, ISL73096EH Q1 BASE Q1 EMITTER Q1 COLLECTOR Q2 EMITTER Q2 BASE Q2 COLLECTOR Q3 EMITTER Q3 BASE Q3 COLLECTOR Q4 EMITTER Q4 BASE Q4 COLLECTOR Q5 EMITTER Q5 BASE Q5 COLLECTOR NC (No internal Connection) PIN NAME/DESCRIPTIO

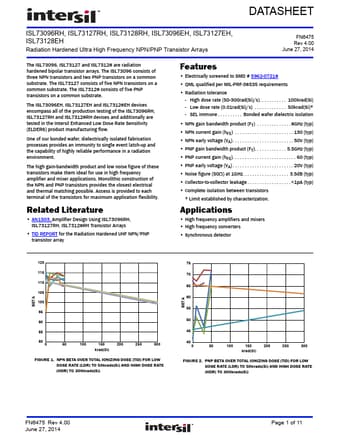

Radiation Hardened Ultra High Frequency NPN/PNP Transistor Arrays ISL73096RH, ISL73127RH, ISL73128RH, ISL73096EH, ISL73127EH, ISL73128EH The ISL73096, ISL73127 and ISL73128 are radiation hardened bipolar transistor arrays.
The ISL73096 consists of three NPN transistors and two PNP transistors on a common substrate.
The ISL73127 consists of five NPN transistors on a common substrate.
The ISL73128 consists of five PNP transistors on a common substrate.
The ISL73096EH, ISL73127EH and ISL73128EH d
