2N5551SC - EPITAXIAL PLANAR NPN TRANSISTOR

2N5551SC Description

SEMICONDUCTOR TECHNICAL DATA GENERAL PURPOSE APPLICATION.HIGH VOLTAGE APPLICATION..

2N5551SC Features

* High Collector Breakdwon Voltage : VCBO=180V, VCEO=160V Low Leakage Current. : ICBO=50nA(Max. ) VCB=120V Low Saturation Voltage : VCE(sat)=0.2V(Max. ) IC=50mA, IB=5mA MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage VCBO 180 Collector-Emitter Voltage VCEO 160 Emitt

📥 Download Datasheet

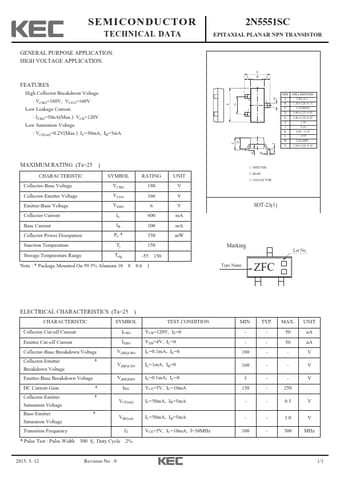

Preview of 2N5551SC PDF

Datasheet Details

Part number
2N5551SC
Manufacturer
KEC
File Size
339.06 KB
Datasheet
2N5551SC-KEC.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
