LP6280

Dual Channel Output LCD Bias Power

LP6280 Features

* include under-voltage lockout (UVLO), internal soft start, current limit protection, thermal shutdown protection. The LP6280 is available in a space saving WLCSP 15-ball (0.4mm pitch) package. Order Information LP6280

* F: Pb-Free Package Type HVF: WLCSP-15 Features

LP6280 General Description

The LP6280 boost converter is designed to supple bias power positive / negative output source driver application. it has wide input voltage range of 2.5V to 5.5V and output currents up to 120mA. The LP6280 is a high efficiency synchronous boost converter, which is based on current mode topology, fix.

LP6280 Datasheet (636.36 KB)

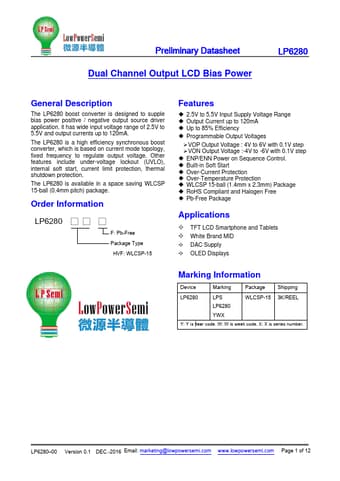

LP6280 Datasheet Preview — Preview of LP6280 PDF

Datasheet Details

Part number:

LP6280

Manufacturer:

Lowpowersemi

File Size:

636.36 KB

Description:

Dual channel output lcd bias power.
