LP6285

Multi-Channel DC-DC Converter

LP6285 Features

* high short-circuit current, fast slew rate and rail-to-rail inputs and outputs. The positive/negative charge pump controller provides regulated Gate-On voltage. The regulation of the charge pump is generated by the internal comparator that senses the output voltage and compares it with an internal r

LP6285 General Description

The LP6285 includes a high-efficiency boost regulator, a VCOM buffer, and dual charge pump controller for active matrix TFT LCDs. The converter is a high switching frequency current-mode regulator with an integrated N-Channel 200mΩ MOSFET that allows the use of small inductors and ceramic capacitors.

LP6285 Datasheet (439.25 KB)

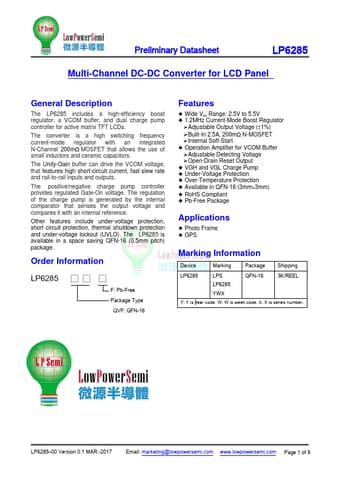

Preview of LP6285 PDF

Datasheet Details

Part number:

LP6285

Manufacturer:

Lowpowersemi

File Size:

439.25 KB

Description:

Multi-channel dc-dc converter.
