LP6286

Multi-Channel DC-DC Converter

LP6286 Features

* high short-circuit current, fast slew rate and rail-to-rail inputs and outputs. The charge pump controller provides regulated TFT Gate-On voltage. The regulation of the charge pump is generated by the internal comparator that senses the output voltage and compares it with an internal reference. Othe

LP6286 General Description

The LP6286 includes a high-efficiency boost regulator, a gate pulse modulator (GPM), a voltage detector, a VCOM buffer, and dual charge pump controller for active matrix TFT LCDs. The converter is a high switching frequency current-mode regulator with an integrated N-Channel 0.2Ω MOSFET that allows .

LP6286 Datasheet (507.14 KB)

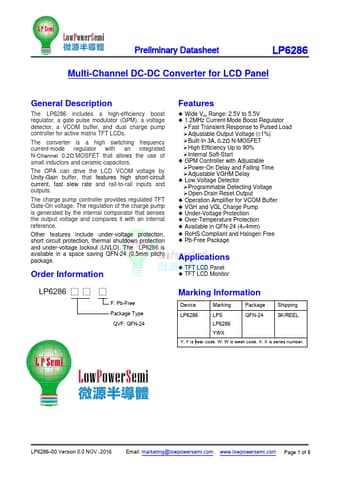

Preview of LP6286 PDF

Datasheet Details

Part number:

LP6286

Manufacturer:

Lowpowersemi

File Size:

507.14 KB

Description:

Multi-channel dc-dc converter.
