ME2306S N-Channel 30V (D-S) MOSFET

ME2306S Description

N-Channel 30V(D-S) MOSFET GENERAL .
The ME2306S is the N-Channel logic enhancement mode power field effect transistors, using high cell density, DMOS trench technology.

ME2306S Features

* FEATURES
* RDS(ON)≦37mΩ@ VGS =10V
* RDS(ON)≦49mΩ@VGS=4.5V
* Super high density cell design for extremely low RDS(ON)

ME2306S Applications

* Power Management in Note book
* DC/DC Converter
* Load Switch
* LCD Display inverter PIN CONFIGURATION (SOT-23) Top View
* The Ordering Information: ME2306S (Pb-free) ME2306S-G (Green product-Halogen free) Absolute Maximum Ratings (TA=25℃

📥 Download Datasheet

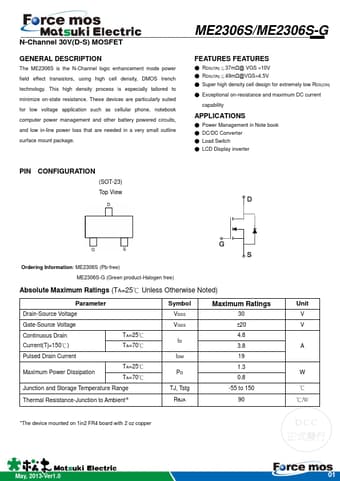

Preview of ME2306S PDF
