DS2030AB - Single-Piece 256kb Nonvolatile SRAM

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	DS2030AB
Manufacturer	Maxim Integrated Products
File Size	200.59 KB
Description	Single-Piece 256kb Nonvolatile SRAM
Datasheet	DS2030AB Datasheet

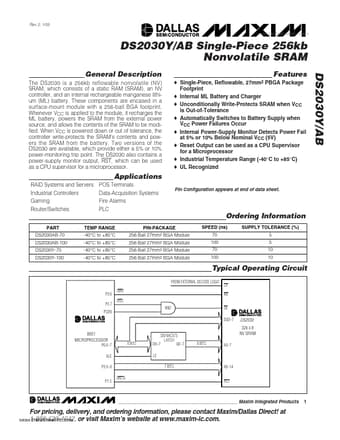

Additional preview pages of the DS2030AB datasheet.

Product details

Description

The DS2030 is a 256kb reflowable nonvolatile (NV) SRAM, which consists of a static RAM (SRAM), an NV controller, and an internal rechargeable manganese lithium (ML) battery.

Features

Single-Piece, Reflowable, PBGA Package Footprint.
Internal ML Battery and Charger.
Unconditionally Write-Protects SRAM when VCC is Out-of-Tolerance.
Automatically Switches to Battery Supply when VCC Power Failures Occur.
Internal Power-Supply Monitor Detects Power Fail at 5% or 10% Below Nominal VCC (5V).
Reset Output can be used as a CPU Supervisor for a Microprocessor.
Industrial Temperature Range (-40°C to +85°C).
UL Rec.
