DS2030Y, DS2030AB Single-Piece 256kb Nonvolatile SRAM

DS2030Y Description

Rev 2; 1/05 www.DataSheet4U.com DS2030Y/AB Single-Piece 256kb Nonvolatile SRAM General .
The DS2030 is a 256kb reflowable nonvolatile (NV) SRAM, which consists of a static RAM (SRAM), an NV controller, and an internal rechargeable manganes.

DS2030Y Features

* Single-Piece, Reflowable, PBGA Package Footprint
* Internal ML Battery and Charger
* Unconditionally Write-Protects SRAM when VCC is Out-of-Tolerance
* Automatically Switches to Battery Supply when VCC Power Failures Occur
* Internal Power-Supply Monitor Det

DS2030Y Applications

* RAID Systems and Servers Industrial Controllers Gaming Router/Switches POS Terminals Data-Acquisition Systems Fire Alarms PLC Pin Configuration appears at end of data sheet. Ordering Information PART DS2030AB-70 DS2030AB-100 DS2030Y-70 DS2030Y-100 TEMP RANGE -40°C to +85°C -40°C to +85°C -40°C to +

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DS2030Y, DS2030AB. Please refer to the document for exact specifications by model.

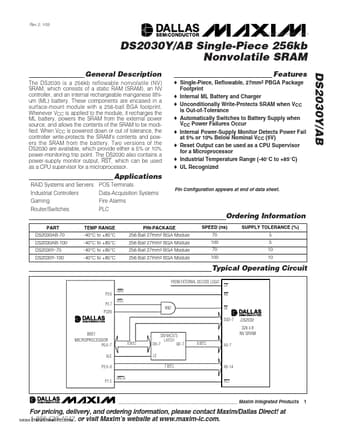

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS2030Y, DS2030AB
Manufacturer
Maxim Integrated ↗ Products
File Size
200.59 KB
Datasheet
DS2030AB_MaximIntegratedProducts.pdf
Description
Single-Piece 256kb Nonvolatile SRAM
Note
This datasheet PDF includes multiple part numbers: DS2030Y, DS2030AB.
Please refer to the document for exact specifications by model.
