SY100S811 Datasheet - Micrel Semiconductor

SINGLE SUPPLY 1:9 PECL/TTL-TO-PECL

SY100S811 Features

* s PECL version of popular ECLinPS E111 s Low skew s Guaranteed skew spec s VBB output s TTL enable input s Selectable TTL or PECL clock input s Single +5V supply s Differential internal design s Similar pin configuration to E111 s PECL I/O fully compatible with industry standard s Internal 75KΩ PECL

SY100S811 General Description

The SY100S811 is a low skew 1-to-9 PECL differential driver designed for clock distribution in new, highperformance PECL systems. It accepts either a PECL clock input or a TTL input by using the TTL enable pin TEN. When the TTL enable pin is HIGH, the TTL input is enabled and the PECL input is disab.

SY100S811 Datasheet (123.52 KB)

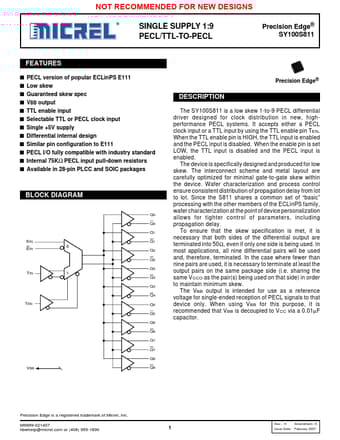

SY100S811 Datasheet Preview — Preview of SY100S811 PDF

Datasheet Details

Part number:

SY100S811

Manufacturer:

Micrel Semiconductor

File Size:

123.52 KB

Description:

Single supply 1:9 pecl/ttl-to-pecl.
