SY100S838 - CLOCK GENERATION CHIP

Datasheet Summary

Description

The SY100S838/L is a low skew (÷1, ÷2/3) or (÷2, ÷4/ 6) clock generation chip designed explicitly for low skew clock generation applications.

The internal dividers are synchronous to each other, therefore, the common output edges are all precisely aligned.

Features

3.3V and 5V power supply options.
50ps output-to-output skew.
Synchronous enable/disable.
Master Reset for synchronization.
Internal 75KΩ input pull-down resistors.
Available in 20-pin SOIC package TRUTH TABLE CLK EN ZL ZZ H XX NOTES: Z = LOW-to-HIGH transition ZZ = HIGH-to-LOW transition MR L L H Function Divide Hold Q0.
3 Reset Q0.
3 FSEL L L H H DIVSEL L H L H Q0, Q1.

Datasheet Details

Part number	SY100S838
Manufacturer	Micrel Semiconductor
File Size	504.05 KB
Description	CLOCK GENERATION CHIP
Datasheet	SY100S838 Datasheet
Additional preview pages of the SY100S838 datasheet.

📁 Similar Datasheet

SY100 - 3 Port Solenoid Valve Rubber Seal (SMC)

SY100EL11V - 5V/3.3V ECL 1:2 Differential Fanout Buffe (Microchip)

SY100EL16S - 5V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER (Synergy)

SY100EL16V - 5V/3.3V ECL Differential Receiver (Microchip)

SY100EL16VS - 3.3V/5V Variable Output Swing Differential Receiver (Microchip)

SY100EL29V - 5V/3.3V Dual Differential Data and Clock D Flip-Flop (Microchip)

SY100EL33L - 3.3V ECL/4 Divider (Microchip)

SY100EL52 - 5V ECL Differential Data and Clock D Flip-Flop (Microchip)

SY100EL56V - 5V/3.3V Dual Differential 2:1 Multiplexer (Microchip)

SY100ELT21L - 3.3V Differential LVPECL-to-LVTTL Translator (Microchip)

Full PDF Text Transcription

Click to expand full text

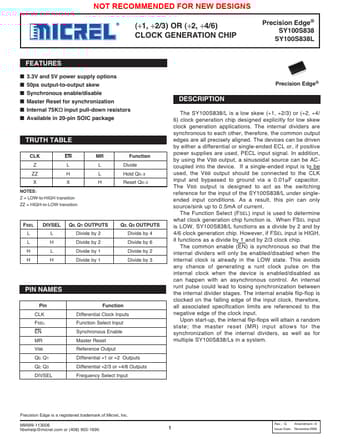

Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS (÷1, ÷2/3) OR (÷2, ÷4/6) CLOCK GENERATION CHIP Precision Edge® Precision SEYd1g00eS®838 SY1S0Y01S008S38838L SY100S838L FEATURES ■ 3.
