SY89473U

Precision LVPECL 2:1 Multiplexer with 1:2 Fanout and Internal Termination

SY89473U Features

* Selects between two input channels and provides two copies of the selected output

* Guaranteed AC performance over temperature and supply voltage: - DC to 2.5Gbps data throughput - DC to 2.5GHz fMAX (clock) -

SY89473U General Description

The SY89473U is a 2.5V/3.3V precision, high-speed 2:1 differential MUX capable of processing clocks up to 2.5GHz and data up to 2.5Gbps. The differential input includes Micrel’s unique, 3-pin input termination architecture that directly interfaces to any differential signal (AC- or DC-coupled) as sm.

SY89473U Datasheet (593.40 KB)

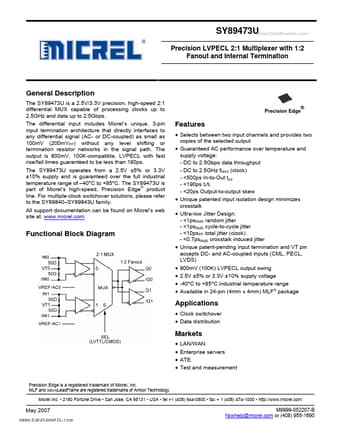

Preview of SY89473U PDF

Datasheet Details

Part number:

SY89473U

Manufacturer:

Micrel Semiconductor

File Size:

593.40 KB

Description:

Precision lvpecl 2:1 multiplexer with 1:2 fanout and internal termination.
