SY89421V

5V/3.3V HIGH-PERFORMANCE PHASE LOCKED LOOP

SY89421V Features

* s 3.3V and 5V power supply options s 1.12GHz maximum VCO frequency s 30MHz to 560MHz reference input operating frequency s External 2.0GHz VCO capability s Low jitter differential design s Frequency doubler mode s PECL Differential output s External loop filter optimizes performance/cost s Available

SY89421V General Description

The SY89421V is a digital Phase Locked Loop based on Micrel-Synergy's differential PLL technology. It is capable of operating in the 30MHz to 560MHz reference input frequency range, and up to 2000MHz with the HFIN input and an external VCO. Use of a phase-frequency detector results in excellent PLL .

SY89421V Datasheet (81.79 KB)

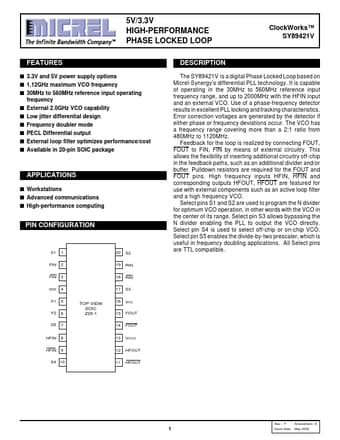

Preview of SY89421V PDF

Datasheet Details

Part number:

SY89421V

Manufacturer:

Micrel Semiconductor

File Size:

81.79 KB

Description:

5v/3.3v high-performance phase locked loop.
