SY89426

SONET OC-12/OC-3 CLOCK SYNTHESIZER

SY89426 Features

* s Single chip source for 622.08MHz and 155.52MHz clocks s 622.08MHz output is differential PECL, 155.52MHz output is single-ended PECL s TTL/CMOS compatible inputs and reference output s SONET compliant jitter performance (≤0.01UI) s Choice of three reference frequencies s Only 395mW (typ) s Complie

SY89426 General Description

Micrel's SY89426 Multi-Output Phase Locked Loop (PLL) is a SONET compliant clock generator providing 622.08MHz, 155.52MHz and retimed reference clock outputs. The PLL produces low jitter OC-12/STS-12 and OC-3/STS-3 rate clocks from an input reference clock of 38.88, 51.84, or 77.76MHz. Additionally,.

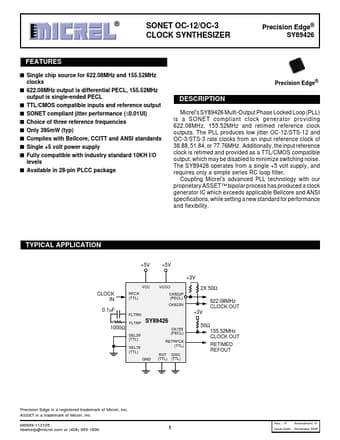

SY89426 Datasheet (73.75 KB)

Preview of SY89426 PDF

Datasheet Details

Part number:

SY89426

Manufacturer:

Micrel Semiconductor

File Size:

73.75 KB

Description:

Sonet oc-12/oc-3 clock synthesizer.
