SY89420V Datasheet, Loop, Micrel Semiconductor

SY89420V Features

• Loop s 3.3V and 5V power supply options s 1.12GHz maximum VCO frequency s 30MHz to 560MHz reference input operating frequency s Frequency doubler mode s Low jitter design s PECL differential

PDF File Details

Part number:

SY89420V

Manufacturer:

Micrel Semiconductor

File Size:

92.17kb

Download:

📄 Datasheet

Description:

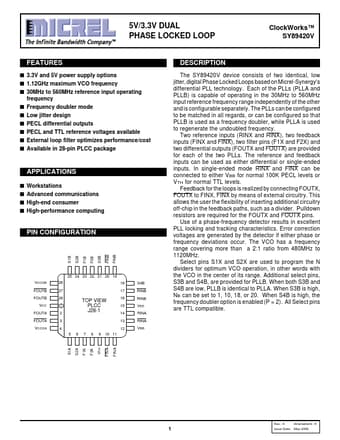

5v/3.3v dual phase locked loop. The SY89420V device consists of two identical, low jitter, digital Phase Locked Loops based on Micrel-Synergy's differential PLL tech

SY89420V Application

• Applications s s s s Workstations Advanced communications High-end consumer High-performance computing PIN CONFIGURATION S2B 25 24 23 22 21 20 19
