SY89429A

PROGRAMMABLE FREQUENCY SYNTHESIZER

SY89429A Features

* n Improved jitter performance over SY89429 n 25MHz to 400MHz differential PECL outputs n ±25ps peak-to-peak output jitter n Minimal frequency over-shoot n Synthesized architecture n Serial 3 wire interface n Parallel interface for power-on n Internal quartz reference oscillator driven by qua

SY89429A General Description

The SY89429A is a general purpose, synthesized clock source targeting applications that require both serial and parallel interfaces. Its internal VCO will operate over a range of frequencies from 400MHz to 800MHz. The differential PECL output can be configured to be the VCO frequency divided by 2, 4.

SY89429A Datasheet (487.84 KB)

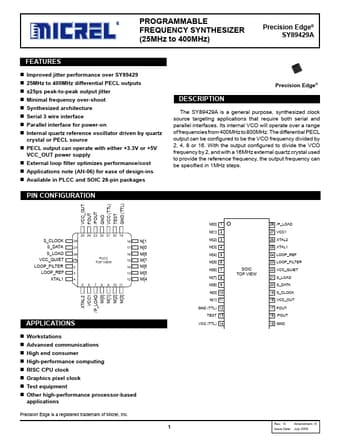

Preview of SY89429A PDF

Datasheet Details

Part number:

SY89429A

Manufacturer:

Micrel Semiconductor

File Size:

487.84 KB

Description:

Programmable frequency synthesizer.
