SY89429V

PROGRAMMABLE FREQUENCY SYNTHESIZER

SY89429V Features

* 3.3V and 5V power supply options

* 25MHz to 400MHz differential PECL outputs

* 50ps peak-to-peak output jitter

* Minimal frequency over-shoot

* Synthesized architecture

* Serial 3-wire interface

* Parallel interface for power-on

* Internal quartz reference oscillato

SY89429V General Description

The SY89429V is a general purpose, synthesized clock source targeting applications that require both serial and parallel interfaces. Its internal VCO will operate over a range of frequencies from 400MHz to 800MHz. The differential PECL output can be configured to be the VCO frequency divided by 2, 4.

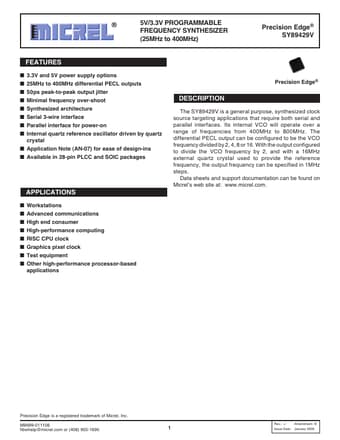

SY89429V Datasheet (600.40 KB)

Preview of SY89429V PDF

Datasheet Details

Part number:

SY89429V

Manufacturer:

Micrel Semiconductor

File Size:

600.40 KB

Description:

Programmable frequency synthesizer.
