SY89425

DUAL SONET OC-12 CLOCK SYNTHESIZER

SY89425 Features

* s Two independently-powered 622.08MHz clock sources one chip s Differential PECL outputs s TTL/CMOS compatible inputs s SONET compliant jitter performance (≤0.01UI) s Choice of three reference frequencies for each PLL s Only 395mW per PLL (typ) s Complies with Bellcore, CCITT and ANSI standards s Si

SY89425 General Description

Micrel-Synergy's SY89425 Dual Phase Locked Loop (PLL) consists of two totally separate, SONET compliant 622.08MHz clock generators on one chip. The user may select to power both PLLs or PLL A only. Each PLL produces a low-jitter OC-12/STS-12 clock rate from an input reference clock of 38.88, 51.84, .

SY89425 Datasheet (93.86 KB)

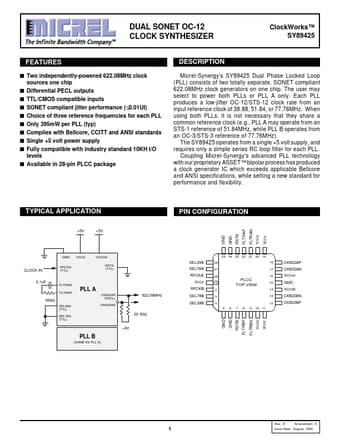

Preview of SY89425 PDF

Datasheet Details

Part number:

SY89425

Manufacturer:

Micrel Semiconductor

File Size:

93.86 KB

Description:

Dual sonet oc-12 clock synthesizer.
