SY89809L

3.3V 1:9 HIGH-PERFORMANCE / LOW-VOLTAGE BUS CLOCK DRIVER

SY89809L Features

* low pin-to-pin skew (50ps max.) and low part-to-part skew (200ps max.)

* performance previously unachievable in a standard product having such a high number of outputs. The SY89809L is available in a single space saving package, enabling a lower overall cost solution. Datasheets and support do

SY89809L General Description

The SY89809L is a High-Performance Bus Clock Driver with 9 differential HSTL (High-Speed Transceiver Logic) output pairs. The part is designed for use in low-voltage (3.3V/1.8V) applications, which require a large number of outputs to drive precisely aligned, ultra-low skew signals to their destinat.

SY89809L Datasheet (327.53 KB)

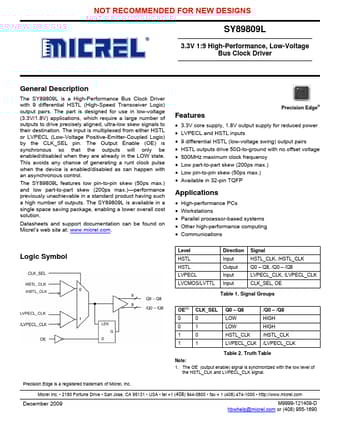

Preview of SY89809L PDF

Datasheet Details

Part number:

SY89809L

Manufacturer:

Micrel Semiconductor

File Size:

327.53 KB

Description:

3.3v 1:9 high-performance / low-voltage bus clock driver.
