SY89825U - HIGH-PERFORMANCE / LOW-VOLTAGE PECL BUS CLOCK DRIVER & TRANSLATOR

Micrel Semiconductor

📥 Download Datasheet

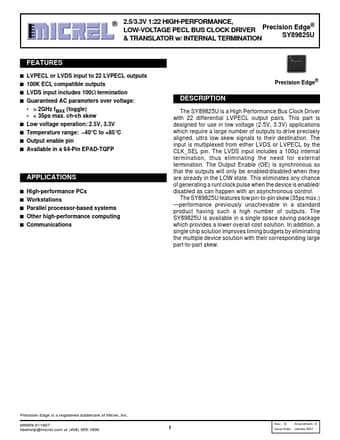

SY89825U Datasheet Preview — Preview of SY89825U PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SY89825U
Manufacturer	Micrel Semiconductor
File Size	60.60 KB
Description	HIGH-PERFORMANCE / LOW-VOLTAGE PECL BUS CLOCK DRIVER & TRANSLATOR
Datasheet	SY89825U_MicrelSemiconductor.pdf

SY89825U Product details

Description

The SY89825U is a High Performance Bus Clock Driver with 22 differential LVPECL output pairs.

Features

s LVPECL or LVDS input to 22 LVPECL outputs s 100K ECL compatible outputs s LVDS input includes 100Ω termination s Guaranteed AC parameters over voltage:.
> 2GHz fMAX (toggle).
< 35ps max. ch-ch skew s Low voltage operation: 2.5V, 3.3V s Temperature range:.
40°C to +85°C s Output enable pin s Available in a 64-Pin EPAD-TQFP.
