SY89826L - PRECISION 1:22 LVDS FANOUT BUFFER/TRANSLATOR

Micrel Semiconductor

The SY89826L by Micrel Semiconductor is a PRECISION 1:22 LVDS FANOUT BUFFER/TRANSLATOR. Below is the official datasheet preview.

📥 Download Datasheet

SY89826L PRECISION 1:22 LVDS FANOUT BUFFER/TRANSLATOR by Micrel Semiconductor - Datasheet Preview — Official preview page of the **SY89826L** PRECISION 1:22 LVDS FANOUT BUFFER/TRANSLATOR datasheet (Micrel Semiconductor).

Datasheet Details

Part number	SY89826L
Manufacturer	Micrel Semiconductor
File Size	148.27 KB
Description	PRECISION 1:22 LVDS FANOUT BUFFER/TRANSLATOR
Datasheet	SY89826L_MicrelSemiconductor.pdf

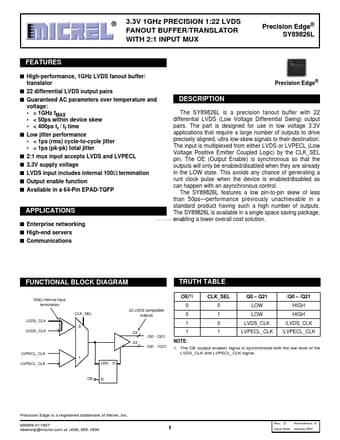

Additional preview pages of the SY89826L datasheet.

SY89826L Product details

Description

APPLICATIONS s Enterprise networking s High-end servers s Communications The SY89826L is a precision fanout buffer with 22 differential LVDS (Low Voltage Differential Swing) output pairs.The part is designed for use in low voltage 3.3V applications that require a large number of outputs to drive precisely aligned, ultra low-skew signals to their destination.The input is multiplexed from either LVDS or LVPECL (Low Voltage Positive Emitter Coupled Logic) by the CLK_SEL pin.The OE (Output Enab

Features

s High-performance, 1GHz LVDS fanout buffer/ translator s 22 differential LVDS output pairs s Guaranteed AC parameters over temperature and voltage:.
> 1GHz fMAX.
< 50ps within device skew.
< 400ps tr / tf time s Low jitter performance.
< 1ps (rms) cycle-to-cycle jitter.
< 1ps (pk-pk) total jitter s 2:1 mux input accepts LVDS and LVPECL 3.3V supply voltage s LVDS input includes internal 100Ω termination s Output enable function s Available in a 64-Pin.
