SY89824L Datasheet, Driver, Micrel Semiconductor

SY89824L Features

  • Driver s 3.3V core supply, 1.8V output supply for reduced power s LVPECL and HSTL inputs s 22 differential HSTL (low-voltage swing) output pairs s HSTL outputs drive 50Ω to ground with no off

PDF File Details

Part number:

SY89824L

Manufacturer:

Micrel Semiconductor

File Size:

84.15kb

Download:

📄 Datasheet

Description:

3.3v 1:22 high-performance / low voltage bus clock driver. The SY89824L is a High Performance Bus Clock Driver with 22 differential HSTL (High Speed Transceiver Logic) output pairs. The part i

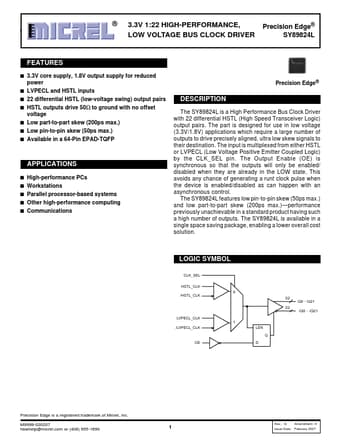

Datasheet Preview: SY89824L 📥 Download PDF (84.15kb)
Page 2 of SY89824L Page 3 of SY89824L

SY89824L Application

  • Applications s High-performance PCs s Workstations s Parallel processor-based systems s Other high-performance computing s Communications Precision
