SY89823L

1:22 DIFFERENTIAL HSTL (1.5V) FANOUT BUFFER/TRANSLATOR

SY89823L Features

* s 22 differential HSTL (low-voltage swing) output pairs s HSTL outputs drive 50Ω to ground with no offset voltage s 3.3V core supply, 1.8V output supply for reduced power s LVPECL and HSTL inputs s Low part-to-part skew (200ps max.) s Low pin-to-pin skew (50ps max.) s Triple-buffered output enable

SY89823L General Description

The SY89823L is a high-performance bus clock driver with 22 differential High-Speed Transceiver Logic (HSTL), 1.5V compatible output pairs. The device is designed for use in low-voltage (3.3V/ 1.8V) applications that require a large number of outputs to drive precisely aligned, ultra-low skew signal.

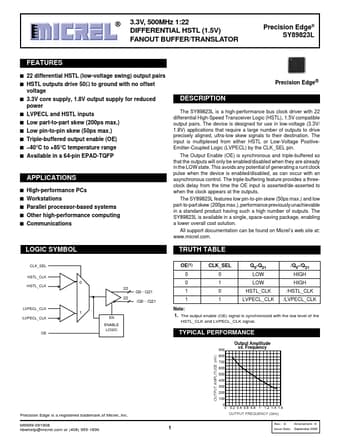

SY89823L Datasheet (116.08 KB)

Preview of SY89823L PDF

Datasheet Details

Part number:

SY89823L

Manufacturer:

Micrel Semiconductor

File Size:

116.08 KB

Description:

1:22 differential hstl (1.5v) fanout buffer/translator.
