SY89827L - DUAL 1:10 HSTL FANOUT BUFFER/TRANSLATOR

Micrel Semiconductor

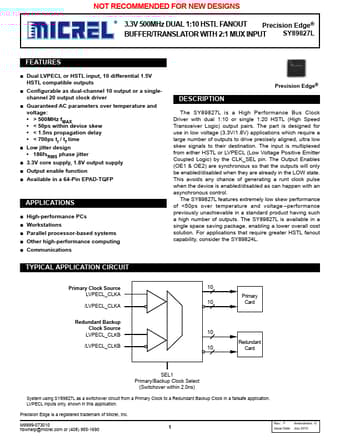

SY89827L Datasheet Preview — Preview of SY89827L PDF

Datasheet Details

Part number	SY89827L
Manufacturer	Micrel Semiconductor
File Size	540.46 KB
Description	DUAL 1:10 HSTL FANOUT BUFFER/TRANSLATOR
Datasheet	SY89827L_MicrelSemiconductor.pdf

SY89827L Product details

Description

Precision Edge® The SY89827L is a High Performance Bus Clock Driver with dual 1:10 or single 1:20 HSTL (High Speed Transceiver Logic) output pairs.The part is designed for use in low voltage (3.3V/1.8V) applications which require a large number of outputs to drive precisely aligned, ultra low skew signals to their destination.The input is multiplexed from either HSTL or LVPECL (Low Voltage Positive Emitter Coupled Logic) by the CLK_SEL pin.The Output Enables (OE1 & OE2) are synchronous so t

Features

Dual LVPECL or HSTL input, 10 differential 1.5V HSTL compatible outputs.
Configurable as dual-channel 10 output or a singlechannel 20 output clock driver.
Guaranteed AC parameters over temperature and voltage:.
> 500MHz fMAX.
< 50ps within device skew.
< 1.5ns propagation delay.
< 700ps tr / tf time.
Low jitter design.
186fsRMS phase jitter.
3.3V core supply, 1.8V output supply.
Output enable function.
Available in.
