MSC080SMA120B4 - N-Channel Power MOSFET

Microchip

The MSC080SMA120B4 by Microchip is a N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

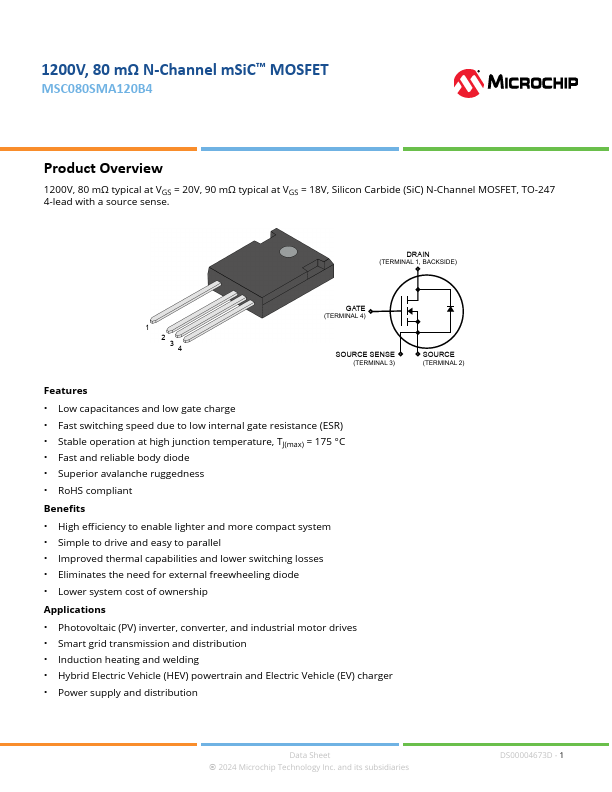

MSC080SMA120B4 N-Channel Power MOSFET by Microchip - Datasheet Preview — Official preview page of the MSC080SMA120B4 N-Channel Power MOSFET datasheet (Microchip).

Datasheet Details

Part number	MSC080SMA120B4
Manufacturer	Microchip
File Size	3.48 MB
Description	N-Channel Power MOSFET
Datasheet	MSC080SMA120B4-Microchip.pdf

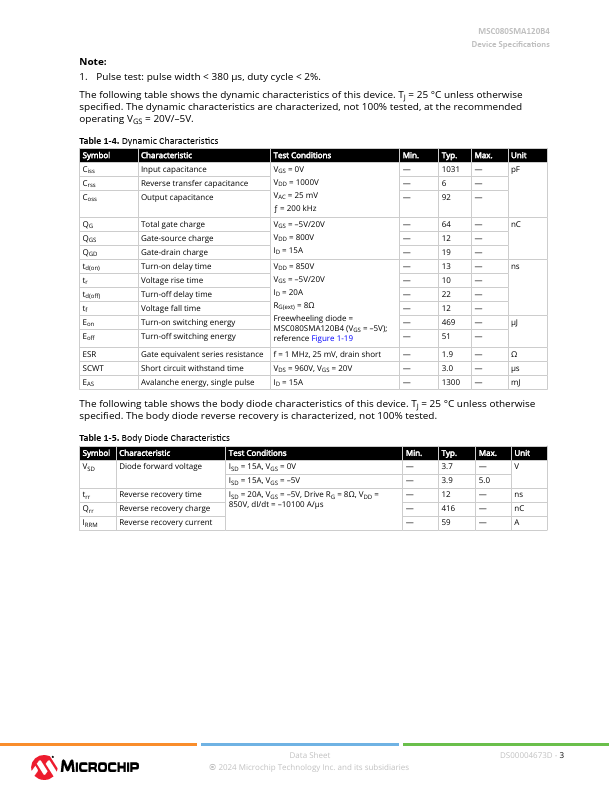

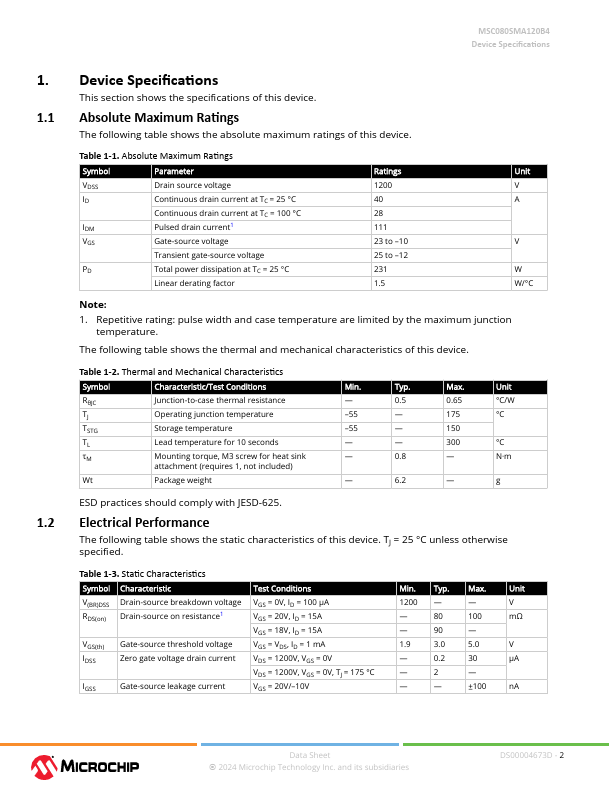

Additional preview pages of the MSC080SMA120B4 datasheet.

MSC080SMA120B4 Product details

Features

Low capacitances and low gate charge.
Fast switching speed due to low internal gate resistance (ESR).
Stable operation at high junction temperature, TJ(max) = 175 °C.
Fast and reliable body diode.
Superior avalanche ruggedness.
RoHS compliant Benefits.
High efficiency to enable lighter and more compact system.
Simple to drive and easy to parallel.
Improved thermal capabilities and lower switching losses.
E.
