2N1132 Datasheet - Microsemi

2N1132 LOW POWER PNP SILICON TRANSISTOR

TECHNICAL DATA LOW POWER PNP SILICON TRANSISTOR Qualified per MIL-PRF-19500/177 Devices 2N1131 2N1131L 2N1132 2N1132L Qualified Level JAN JANTX TO-39 MAXIMUM RATINGS Ratings Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Total Power Dissipation Symbol VCEO VCBO VEBO IC PT Top, Tj All Units 40 50 5.0 600 0.6 2.0 -65 to +200 Units Vdc Vdc Vdc mAdc W W °C @ TA = +250C(1) @ TC = +250C(2) Operating & Storage Temperature Range 1) Derate linearly 3.4 .

2N1132_MicrosemiCorporation.pdf

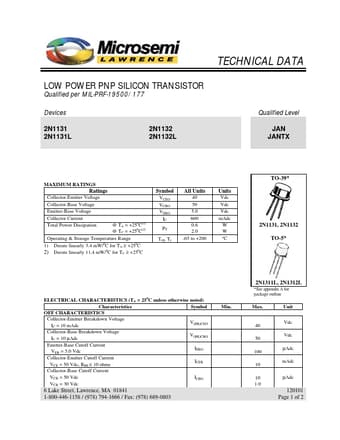

Preview of 2N1132 PDF
2N1132 Datasheet Preview Page 2 2N1132 Datasheet Preview Page 3

Datasheet Details

Part number:

2N1132

Manufacturer:

Microsemi ↗

File Size:

56.61 KB

Description:

Low power pnp silicon transistor.
