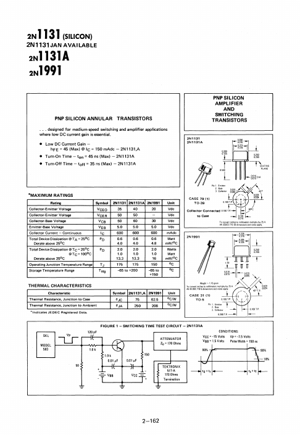

2N1131 Datasheet, transistors equivalent, Motorola

PDF File Details

Part number:

2N1131

Manufacturer:

Motorola

File Size:

136.81kb

Download:

📄 Datasheet

Description:

Pnp silicon annular transistors.

2N1131 Application

• Applications where low DC current gain is essential.
• Low DC Current Gain - hFE =45 (Max) @ IC = 150 mAdc - 2N1131,A
• Turn-On Time
