2N1131A, 2N1131 - PNP SILICON ANNULAR TRANSISTORS

2N1131A Description

2N 1131 (SILl.CON) 2N1131JAN AVAILABLE 2Nl131A 2N1991 PNP SILICON ANNULAR TRANSISTORS * ..designed for medium-speed switching and amplifier appl.

2N1131A Applications

* where low DC current gain is essential.
* Low DC Current Gain - hFE =45 (Max) @ IC = 150 mAdc - 2N1131,A
* Turn-On Time - ton = 45 ns (Max) - 2N 1131A
* Turn-Off Time - toff = 35 ns (Max) - 2N1131A
* MAXIMUM RATINGS Rating Symbol Cpllector
* Emitter Voltage Collector

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N1131A, 2N1131. Please refer to the document for exact specifications by model.

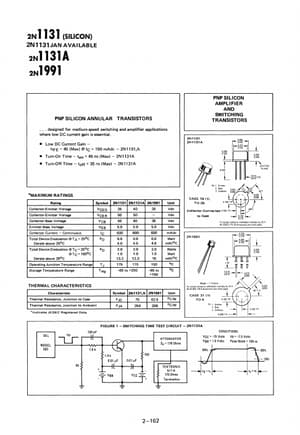

datasheet Preview Page 2

Datasheet Details

Part number
2N1131A, 2N1131
Manufacturer
Motorola
File Size
136.81 KB
Datasheet
2N1131-Motorola.pdf
Description
PNP SILICON ANNULAR TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: 2N1131A, 2N1131.
Please refer to the document for exact specifications by model.
