2N1100, 2N174 Datasheet - Motorola

2N1100 - PNP germanium power transistors

173 2N (GERMANIUM) For Specifications, See 2N277 Data.

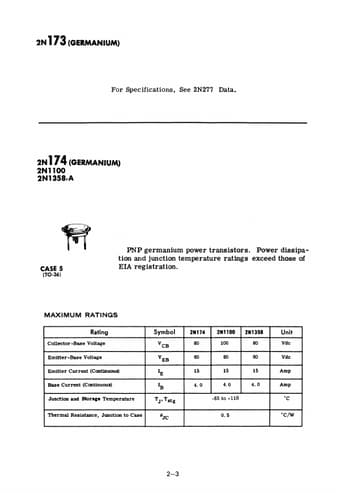

174 2N (GERMANIUM) 2Nl100 2N1358,A CASE 5 (10-36) PNP germanium power transistors.

Power dissipation and junction temperature ratings exceed those of EIA registration.

MAXIMUM RATINGS Rating Collector-Sase Voltage Emitter~Sase Voltage Emitter Current (Continuous) Sase Current (Continuous) Junction and Storage Temperature Symbol VCS VES IE IS TJ,Tstg Thermal Resistance, Junction to Case (iJC 2N174 80 2N1100 100 2N1358 80 60
