APT06DC60HJ - SiC Diode Full Bridge Power Module

Features

  • SiC Schottky Diode - Zero reverse recovery - Zero forward recovery - Temperature Independent switching behavior - Positive temperature coefficient on VF ISOTOP® Package (SOT-227) Very low stray inductance High level of integration.
  • + ~ ISOTOP® Benefits.
  • Outstanding performance at high frequency operation Low losses Low noise switching Direct mounting to heatsink (isolated package) Low junction t.

📥 Download Datasheet

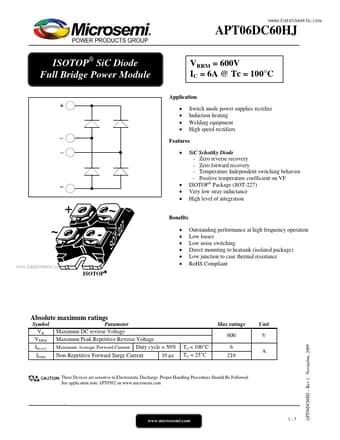

Datasheet preview – APT06DC60HJ

Datasheet Details

Part number APT06DC60HJ
Manufacturer Microsemi
File Size 101.20 KB
Description SiC Diode Full Bridge Power Module
Datasheet download datasheet APT06DC60HJ Datasheet
Additional preview pages of the APT06DC60HJ datasheet.

📁 Similar Datasheet

Other Datasheets by Microsemi

Full PDF Text Transcription

Click to expand full text
APT06DC60HJ ISOTOP® SiC Diode Full Bridge Power Module VRRM = 600V IC = 6A @ Tc = 100°C Application • • • • Switch mode power supplies rectifier Induction heating Welding equipment High speed rectifiers Features • SiC Schottky Diode - Zero reverse recovery - Zero forward recovery - Temperature Independent switching behavior - Positive temperature coefficient on VF ISOTOP® Package (SOT-227) Very low stray inductance High level of integration • • • + ~ ISOTOP® Benefits • • • • • • Outstanding performance at high frequency operation Low losses Low noise switching Direct mounting to heatsink (isolated package) Low junction to case thermal resistance RoHS Compliant ~ www.DataSheet4U.
