QM100HC-M HIGH POWER SWITCHING USE NON-INSULATED TYPE

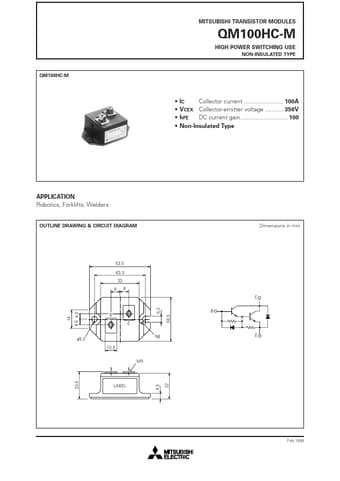

MITSUBISHI TRANSISTOR MODULES QM100HC-M HIGH POWER SWITCHING USE NON-INSULATED TYPE QM100HC-M IC Collector current 100A VCEX Collector-emitter voltage 350V hFE DC current gain 100 Non-Insulated Type APPLICATION Robotics, Forklifts, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 53.5 43.3 33 8 8 C 5.3 4.5 4.5 B 36.5 14 B E φ5.3 10.5 M5 R6 E 23.5 4.5 LABEL 22 Feb.1999 MITSUBISHI TRANSISTOR MODULES QM100HC-M HIGH POWER SWIT.

QM100HC-M_MitsubishiElectricSemiconductor.pdf

QM100HC-M Datasheet Preview — Preview of QM100HC-M PDF

Datasheet Details

Part number:

QM100HC-M

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

69.91 KB

Description:

High power switching use non-insulated type.
