QM15 MEDIUM POWER SWITCHING USE INSULATED TYPE

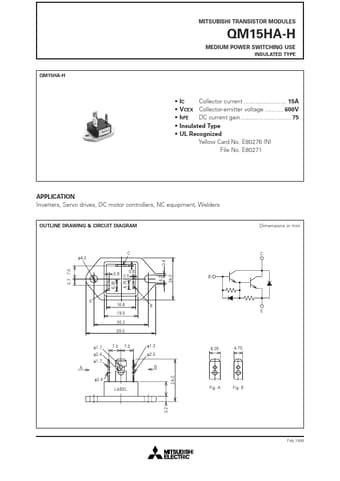

MITSUBISHI TRANSISTOR MODULES QM15HA-H MEDIUM POWER SWITCHING USE INSULATED TYPE QM15HA-H IC Collector current 15A VCEX Collector-emitter voltage 600V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 3.7 7.0 24.0 E 6.35 16.6 19.5 30.2 39.0 4.75 B E φ1.7 φ.

QM15_MitsubishiElectricSemiconductor.pdf

QM15 Datasheet Preview — Preview of QM15 PDF

Datasheet Details

Part number:

QM15

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

62.74 KB

Description:

Medium power switching use insulated type.
