QM20TD-HB MEDIUM POWER SWITCHING USE INSULATED TYPE

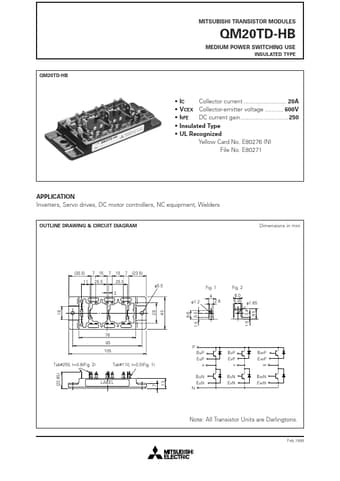

MITSUBISHI TRANSISTOR MODULES QM20TD-HB MEDIUM POWER SWITCHING USE INSULATED TYPE QM20TD-HB IC Collector current 20A VCEX Collector-emitter voltage 600V hFE DC current gain 250 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm (30.5) 11 7 15 25.5 7 15 25.5 2 7 (23.5) φ5.5 φ1.2 Fig.

QM20TD-HB_MitsubishiElectricSemiconductor.pdf

QM20TD-HB Datasheet Preview — Preview of QM20TD-HB PDF

Datasheet Details

Part number:

QM20TD-HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

76.87 KB

Description:

Medium power switching use insulated type.
