M35049-001FP, M35049 Datasheet - Mitsubishi

M35049-001FP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

The M35049-XXXFP is a character pattern display control IC can display on the TV display. It can display 2 pages (24 characters ✕ 12 lines per 1 page) at the same time. It uses a silicon gate CMOS process and it housed in a 20-pin shrink SOP package. For M35049-001FP that is a standard ROM version o.

M35049-001FP Features

* Screen composition 24 characters × 12 lines × 2 pages

* Number of characters displayed 288 (Max.) × 2 pages

* Character composition 12 × 18 dot matrix

* Characters available page 0 : 256 characters page 1 : 256 characters

* Character sizes available 4

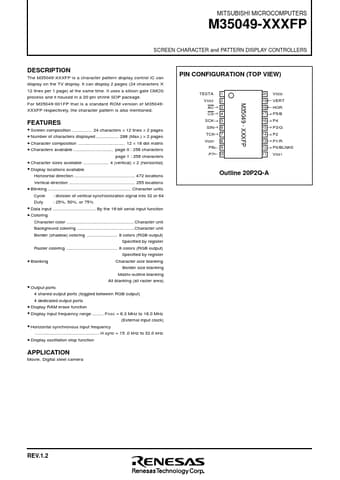

M35049_MitsubishiElectricSemiconductor.pdf
