M35049 - SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

Mitsubishi

📥 Download Datasheet

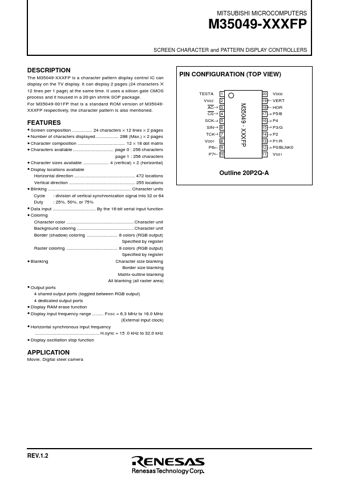

M35049 Datasheet Preview — Preview of M35049 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	M35049
Manufacturer	Mitsubishi
File Size	366.00 KB
Description	SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Datasheet	M35049_MitsubishiElectricSemiconductor.pdf

M35049 Product details

Description

The M35049-XXXFP is a character pattern display control IC can display on the TV display.

Features

Screen composition 24 characters × 12 lines × 2 pages.
Number of characters displayed 288 (Max. ) × 2 pages.
Character composition 12 × 18 dot matrix.
Characters available page 0 : 256 characters page 1 : 256 characters.
Character sizes available 4 (vertical) × 2 (horizontal).
Display locations available Horizontal direction 472 locations Vertical direction 255 locations.
Blinking Character units Cycle : division of verti.
