MGFC5109 Datasheet, Amplifier, Mitsubishi

✔ MGFC5109 Features

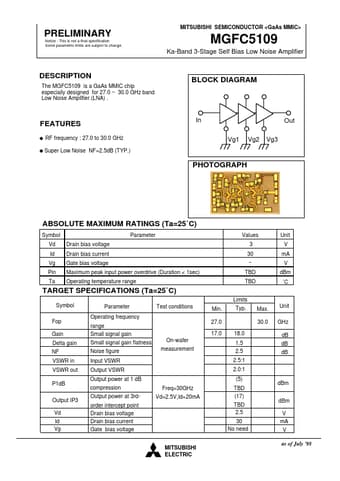

RF frequency : 27.0 to 30.0 GHz Super Low Noise NF=2.5dB (TYP.) In Vg1 Vg2 Vg3 Out PHOTOGRAPH ABSOLUTE MAXIMUM RATINGS (Ta=25˚C) Symbol Vd Id Vg Pin Ta Drain bias vol

PDF File Details

Mitsubishi manufacturer logo

Part number:

MGFC5109

Manufacturer:

Mitsubishi

File Size:

37.78kb

Download:

📄 Datasheet

Description:

Ka-band 3-stage self bias low noise amplifier. The MGFC5109 is a GaAs MMIC chip especially designed for 27.0 ~ 30.0 GHz band Low Noise Amplifier.(LNA) . BLOCK DIAGRAM FEATURES RF

📥 Download PDF (37.78kb)
