MRF281SR1 - RF POWER FIELD EFFECT TRANSISTORS

Motorola

MRF281SR1 Description

ARCHIVE INFORMATION ARCHIVE INFORMATION Freescale Semiconductor Technical Data RF Power Field Effect Transistors N *Channel Enhancement

MRF281SR1 Features

* Excellent Thermal Stability
* Characterized with Series Equivalent Large
* Signal Impedance Parameters
* S
* Parameter Characterization at High Bias Levels
* RoHS Compliant
* In Tape and Reel. R1 Suffix = 500 Units per 12 mm, 7 inch Reel. Docume

MRF281SR1 Applications

* with frequencies from 1000 to 2500 MHz. Characterized for operation Class A and Class AB at 26 volts in commercial and industrial applications.
* Specified Two
* Tone Performance @ 1930 MHz, 26 Volts Output Power
* 4 Watts PEP Power Gain
* 11 dB Efficiency
* 30%

📥 Download Datasheet

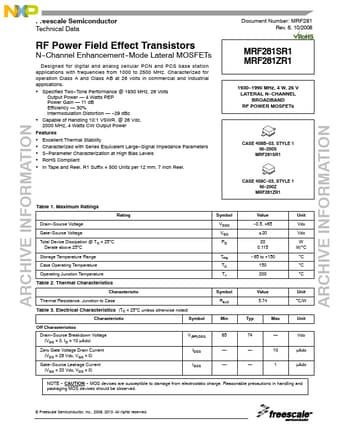

MRF281SR1 Datasheet Preview — Preview of MRF281SR1 PDF

Datasheet Details

Part number: MRF281SR1
Manufacturer: Motorola
File Size: 410.00 KB
Datasheet: MRF281SR1_Motorola.pdf
Description: RF POWER FIELD EFFECT TRANSISTORS
