CS5824

28:4 LVDS Transmitter

CS5824 Features

* Four 7-bit serial and one clock LVDS channels.

* Compatible with ANSI TIA/EIA-644 LVDS standard.

* Wide CKIN ranges from 31MHz to 68MHz.

* Fully integrated on-chip PLL that provides 7X CKIN serial shift clock.

* Pin selectable for rising or falling edge trig

CS5824 General Description

The CS5824 receives four sets of 7-bit data in CMOS logic level and converts them into four lowvoltage differential signaling (LVDS) serial channels. The 7-bit input data is referenced to the CKIN signal. The RF pin selects either rising or falling edge trigger of CKIN. Parallel to serial conversion.

CS5824 Datasheet (378.72 KB)

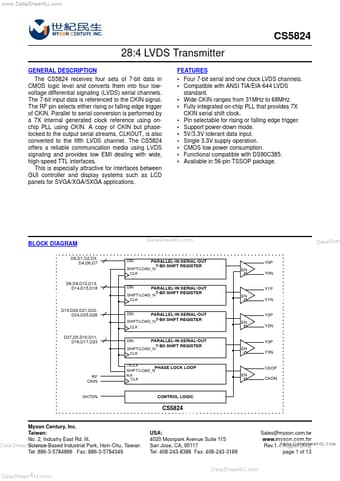

Preview of CS5824 PDF

Datasheet Details

Part number:

CS5824

Manufacturer:

Myson Technology

File Size:

378.72 KB

Description:

28:4 lvds transmitter.
