CS5825

28:4 LVDS Receiver

CS5825 Features

* CS5825 28:4 LVDS Receiver

* Four 7-bit serial data LVDS channels and one clock LVDS channel.

* Compatible with ANSI TIA/EIA-644 LVDS standard.

* Wide serial clocking speed ranges from 31MHz to 68MHz.

* Support open-safe LVDS design.

* Fully integrated on-chi

CS5825 General Description

CS5825 receives four LVDS data channels and one LVDS clock channel. Each data channel is deserialized into 7-bit parallel data bus for output. The clock channel is used for frame sync and fed into an internal PLL that generates the 7X serial clock used in the deserializer. A digital phase alignment .

CS5825 Datasheet (312.86 KB)

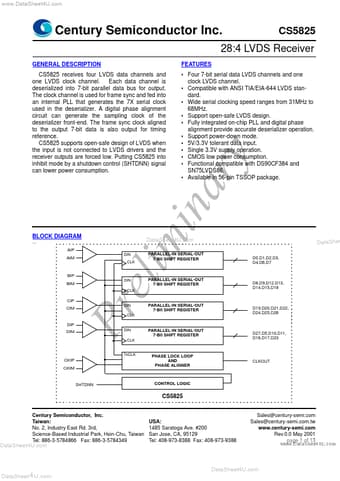

Preview of CS5825 PDF

Datasheet Details

Part number:

CS5825

Manufacturer:

Myson Technology

File Size:

312.86 KB

Description:

28:4 lvds receiver.
