CS5828 Datasheet, Transmitter, Myson Technology

CS5828 Features

  • Transmitter
  • Four 7-bit serial and one clock LVDS channels.
  • Compatible with ANSI TIA/EIA-644 LVDS standard.
  • Wide CKIN ranges from 31MHz to 85MHz.
  • Fully integr

PDF File Details

Part number:

CS5828

Manufacturer:

Myson Technology

File Size:

378.91kb

Download:

📄 Datasheet

Description:

28:4 lvds transmitter. The CS5828 receives four sets of 7-bit data in CMOS logic level and converts them into four lowvoltage differential signaling (LVDS)

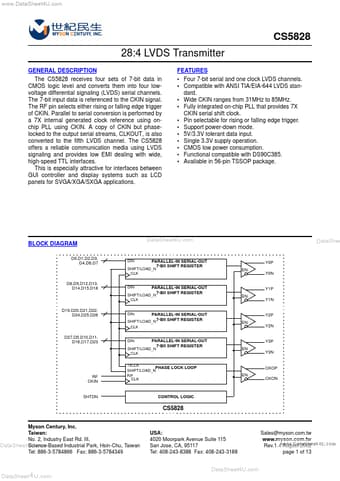

Datasheet Preview: CS5828 📥 Download PDF (378.91kb)
Page 2 of CS5828 Page 3 of CS5828

CS5828 Application

  • Applications FEATURES
  • Four 7-bit serial and one clock LVDS channels.
  • Compatible with ANSI TIA/EIA-644 LVDS standard.
