CS5820

21:3 LVDS Transmitter

CS5820 Features

* CS5820 21:3 LVDS Transmitter

* Three 7-bit serial and one clock LVDS channels.

* Compatible with ANSI TIA/EIA-644 LVDS standard.

* Wide CKIN ranges from 31MHz to 68MHz.

* Fully integrated on-chip PLL that provides 7X CKIN serial shift clock.

* Pin selectable

CS5820 General Description

CS5820 receives three sets of 7-bit data in CMOS logic level and convert them into three low-voltage differential signaling (LVDS) serial channels. The 7bit input data is referenced to the CKIN signal. The RF pin selects either rising or falling edge trigger of CKIN. Parallel to serial conversion is.

CS5820 Datasheet (316.42 KB)

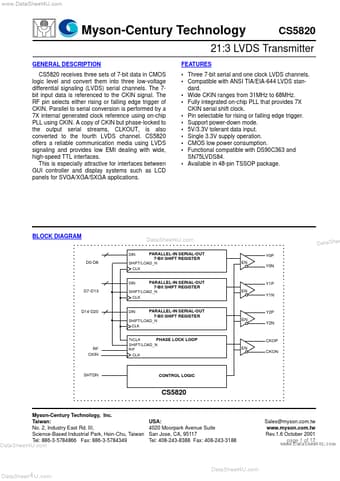

Preview of CS5820 PDF

Datasheet Details

Part number:

CS5820

Manufacturer:

Myson Technology

File Size:

316.42 KB

Description:

21:3 lvds transmitter.
